ML-20 Material Lift

    The ToughLift® ML-20 Material Lift has a maximum lift height of just under 6.5 metres and an impressive maximum load capacity of 363 kilograms.



    The machine is supplied with the Standard Forks load handling attachment, but there are various other accessories which can be purchased via your ToughLift® dealer.

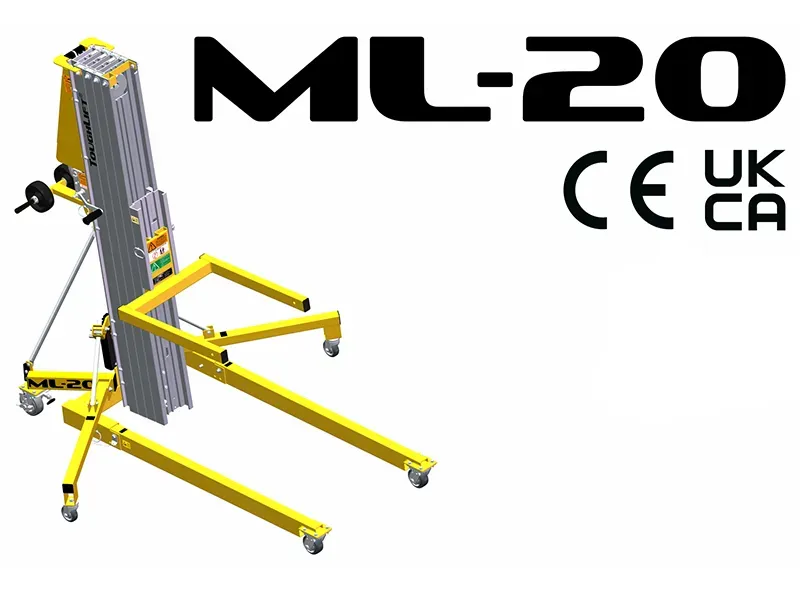

    ToughLift ML-20 3D model graphic.
    Key features & benefits

    ML-20 Material Lift

    The ToughLift® ML-20 Material Lift has a maximum lift height of just under 6.5 metres and an impressive maximum load capacity of 363 kilograms.



    The machine is supplied with the Standard Forks load handling attachment, but there are various other accessories which can be purchased via your ToughLift® dealer.

    Key features & benefits
    ToughLift ML-20 3D model graphic.

    Weight, working height, & other dimensions

    ML-20 Product Code 600020 Metric Imperial
    Machine weight* 190kg 418.9lbs
    Working heights:
    With Standard Forks Down 5.94m 19ft 6in
    With Standard Forks up 6.46m 21ft 2in
    With Load Platform forks down** 5.94m 19ft 6in
    With Load Platform forks up** 6.46m 21ft 2in
    With Boom*** 6.25m 20ft 6in
    Width with stabilisers deployed 1.84m 6ft 0in
    Length with front legs deployed 2.06m 6ft 9in
    Stowed width 0.81m 2ft 8in
    Stowed length 0.76m 2ft 6in
    Stowed height 2.02m 6ft 8in

    *

    Excluding load handling attachments.

    **

    With Standard Forks only.

    ***

    Measurement from the ground to the bottom of the lifting shackle.

    Load capacity at load centres

    Load Centre Weight Load Centre Weight
    46cm 363kg 81cm 204kg
    51cm 332kg 86cm 195kg
    56cm 303kg 91cm 186kg
    61cm 272kg 97cm 177kg
    66cm 255kg 102cm 168kg
    71cm 238kg 107cm 159kg
    76cm 221kg

    Refer to the Instruction Handbook for further information relating to the load capacities and load centres for each load handling attachment.
