ML-25 Material Lift

The ToughLift® ML-25 Material Lift is the largest machine in the range with a maximum lift height of just under 8 metres and an impressive maximum load capacity of 295 kilograms.



The machine is supplied with the Standard Forks load handling attachment, but there are various other accessories which can be purchased via your ToughLift® dealer.

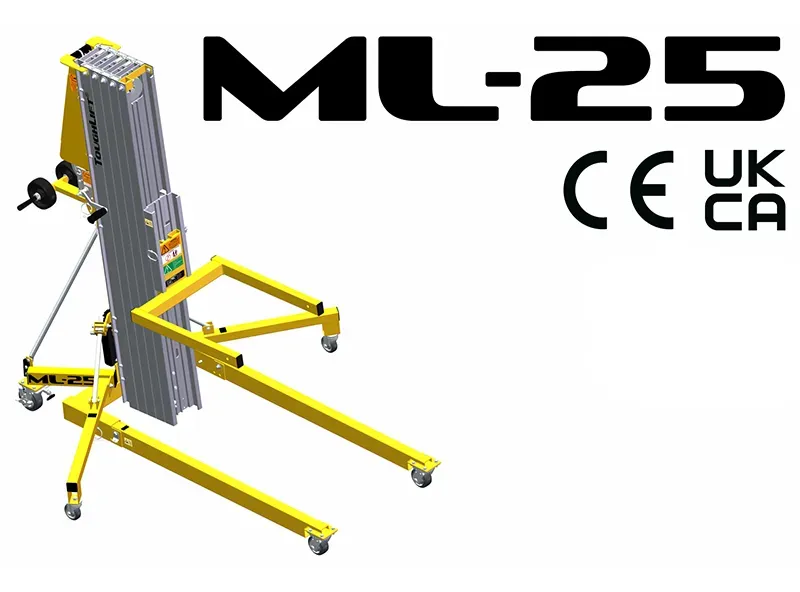

ToughLift ML-25 3D model graphic.
Key features & benefits

ML-25 Material Lift

The ToughLift® ML-25 Material Lift is the largest machine in the range with a maximum lift height of just under 8 metres and an impressive maximum load capacity of 295 kilograms.



The machine is supplied with the Standard Forks load handling attachment, but there are various other accessories which can be purchased via your ToughLift® dealer.

Key features & benefits
ToughLift ML-25 3D model graphic.

Weight, working height, & other dimensions

ML-25 Product Code 600025 Metric Imperial
Machine weight* 214kg 471.8lbs
Working heights:
With Standard Forks Down 7.42m 24ft 4in
With Standard Forks up 7.94m 26ft 1in
With Load Platform forks down** 7.42m 24ft 4in
With Load Platform forks up** 7.94m 26ft 1in
With Boom*** 7.42m 24ft 4in
Width with stabilisers deployed 1.84m 6ft 0in
Length with front legs deployed 2.06m 6ft 9in
Stowed width 0.81m 2ft 8in
Stowed length 0.81m 2ft 8in
Stowed height 2.02m 6ft 8in

*

Excluding load handling attachments.

**

With Standard Forks only.

***

Measurement from the ground to the bottom of the lifting shackle.

Load capacity at load centres

Load Centre Weight Load Centre Weight
46cm 295kg 81cm 159kg
51cm 264kg 86cm 150kg
56cm 235kg 91cm 141kg
61cm 204kg 97cm 132kg
66cm 193kg 102cm 122kg
71cm 181kg 107cm 113kg
76cm 170kg

Refer to the Instruction Handbook for further information relating to the load capacities and load centres for each load handling attachment.
