ML-10 Material Lift

    The ToughLift® ML-10 Material Lift is the smallest machine in the range with a maximum lift height of just under 3.5 metres and an impressive maximum load capacity of 454 kilograms.



    The machine is supplied with the Standard Forks load handling attachment, but there are various other accessories which can be purchased via your ToughLift® dealer.

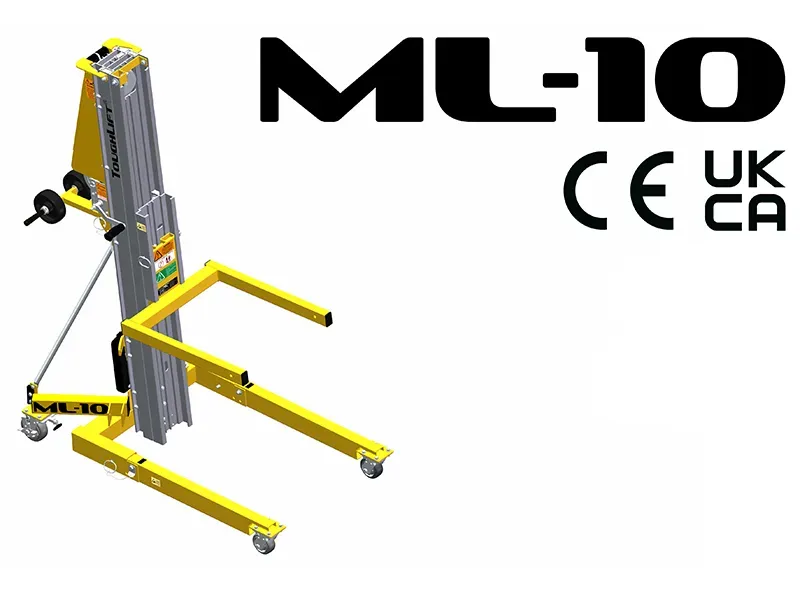

    ToughLift ML-10 3D model graphic.
    Key features & benefits

    ML-10 Material Lift

    The ToughLift® ML-10 Material Lift is the smallest machine in the range with a maximum lift height of just under 3.5 metres and an impressive maximum load capacity of 454 kilograms.



    The machine is supplied with the Standard Forks load handling attachment, but there are various other accessories which can be purchased via your ToughLift® dealer.

    Key features & benefits
    ToughLift ML-10 3D model graphic.

    Weight, working height, & other dimensions

    ML-10 Product Code 600010 Metric Imperial
    Machine weight* 129kg 284.4lbs
    Working heights:
    With Standard Forks Down 2.97m 9ft 9in
    With Standard Forks up 3.49m 11ft 5in
    With Load Platform forks down** 2.97m 9ft 9in
    With Load Platform forks up** 3.49m 11ft 5in
    With Boom*** 3.28m 10ft 9in
    Length with front legs deployed 1.51m 4ft 11in
    Stowed width 0.81m 2ft 8in
    Stowed length 0.76m 2ft 6in
    Stowed height 2.02m 6ft 8in

    *

    Excluding load handling attachments.

    **

    With Standard Forks only.

    ***

    Measurement from the ground to the bottom of the lifting shackle.

    Load capacity at load centres

    Load Centre Weight Load Centre Weight
    46cm 454kg 81cm 295kg
    51cm 454kg 86cm 272kg
    56cm 454kg 91cm 249kg
    61cm 454kg 97cm 227kg
    66cm 414kg 102cm 204kg
    71cm 374kg 107cm 181kg
    76cm 335kg

    Refer to the Instruction Handbook for further information relating to the load capacities and load centres for each load handling attachment.
