ML-15 Material Lift

The ToughLift® ML-15 Material Lift has a maximum lift height of just under 5 metres and an impressive maximum load capacity of 363 kilograms.



The machine is supplied with the Standard Forks load handling attachment, but there are various other accessories which can be purchased via your ToughLift® dealer.

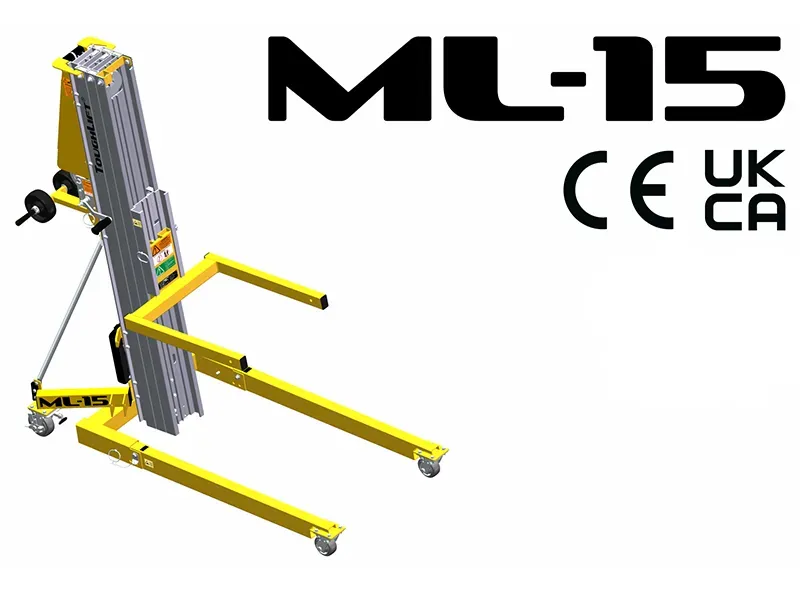

ToughLift ML-15 3D model graphic.
Key features & benefits

ML-15 Material Lift

The ToughLift® ML-15 Material Lift has a maximum lift height of just under 5 metres and an impressive maximum load capacity of 363 kilograms.



The machine is supplied with the Standard Forks load handling attachment, but there are various other accessories which can be purchased via your ToughLift® dealer.

Key features & benefits
ToughLift ML-15 3D model graphic.

Weight, working height, & other dimensions

ML-15 Product Code 600015 Metric Imperial
Machine weight* 153kg 337.3lbs
Working heights:
With Standard Forks Down 4.46m 14ft 8in
With Standard Forks up 4.98m 16ft 4in
With Load Platform forks down** 4.46m 14ft 8in
With Load Platform forks up** 4.98m 16ft 4in
With Boom*** 4.76m 15ft 7in
Length with front legs deployed 1.88m 6ft 2in
Stowed width 0.81m 2ft 8in
Stowed length 0.76m 2ft 6in
Stowed height 2.02m 6ft 8in

*

Excluding load handling attachments.

**

With Standard Forks only.

***

Measurement from the ground to the bottom of the lifting shackle.

Load capacity at load centres

Load Centre Weight Load Centre Weight
46cm 363kg 81cm 295kg
51cm 363kg 86cm 281kg
56cm 363kg 91cm 268kg
61cm 363kg 97cm 254kg
66cm 346kg 102cm 240kg
71cm 329kg 107cm 227kg
76cm 312kg

Refer to the Instruction Handbook for further information relating to the load capacities and load centres for each load handling attachment.
